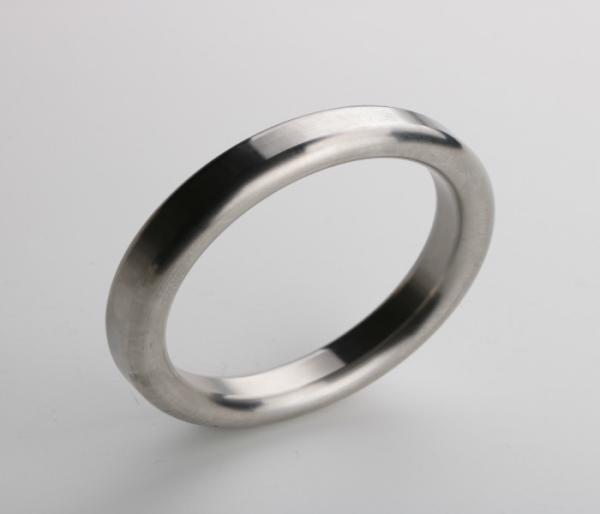

Stainless Steel ASME B16.20 Ring Joint Gasket With Durable Metal Seals Ring

Ring Joint gaskets come in two basic types, an oval cross section and an octagonal cross section. These basic shapes are used in pressures up to 10,000 psi. The hardness of the ring should always be lesser than the hardness of the flanges to prevent flange deformation. Dimensions for ring joint gaskets and grooves are covered in ASME B16.20 and API6A.Asian stocks a wide range of sizes and materials ready for immediate shipment from R11 to R105. Stock materials include large variety of materials

Standard Style R Ring Type Joints are manufactured inaccordance with ASME B16.20 or API 6A.Available in both oval and octagonal configurations, both types are interchangeable on the modern octagonal type grooved flanges.

As with all solid metal Ring Type Joints including Style R, it is recommended to replace the ring when flanged connection is broken.

Surface finish of the Style R Ring Type Joint sealing faces (radiused ends of an Oval and the 23° angled faces of an Octagonal shape) shall not be greater than 1.6 μm Ra /63 μin RMS. Flexitallic Style R Ring Type Joints can bemanufactured in accordance with all relevant standardsto suit the following flange designations:

API 6A

ASME16.20

R Oval & Octagonal gasket ring Can be used for ASME B16.5 flange class 150 to 2500 and
API 6B to Class 5000
»Soft iron and carbon steel gaskets are zinc plated to prevent
corrosion
» All rings are marked with the ring number, material and the
date of manufacture and API designation.
